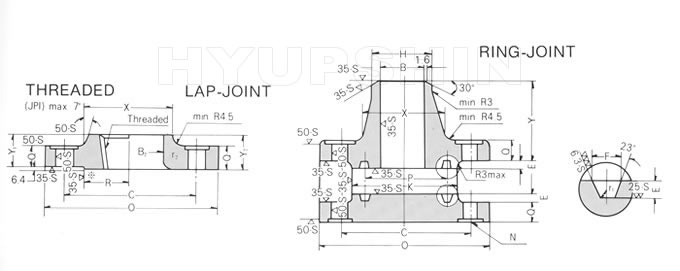

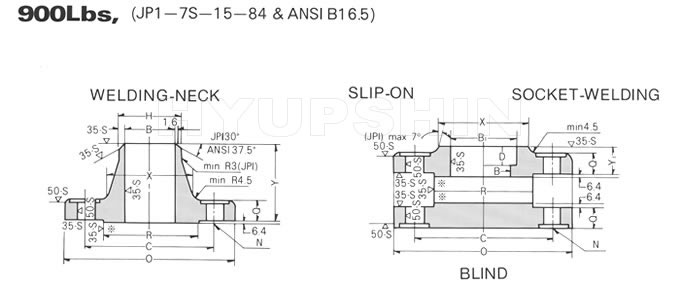

| ANSI B16.5 FLANGE CLASS 900 |
|
| WELDING NECK FLANGE 900LBS |
|
| SLIP ON FLANGE, LAP JOINT FLANGE, SOCKET WELD FLANGE, 900LBS |
|
| BLIND FLANGE, BLANK FLANGE, 900LBS |
|
| THREADED FLANGE 900LBS |
|
| RAISED FACE (RF), FLAT FACE (FF), RING TYPE JOINT (RTJ) |
|
|
|

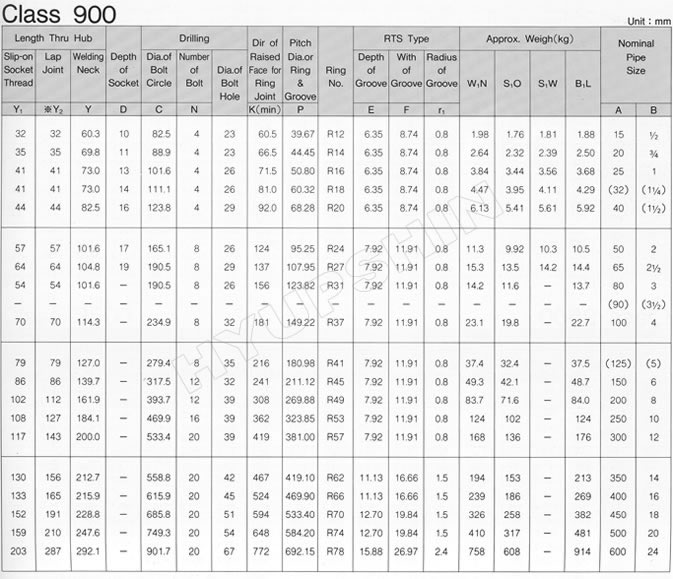

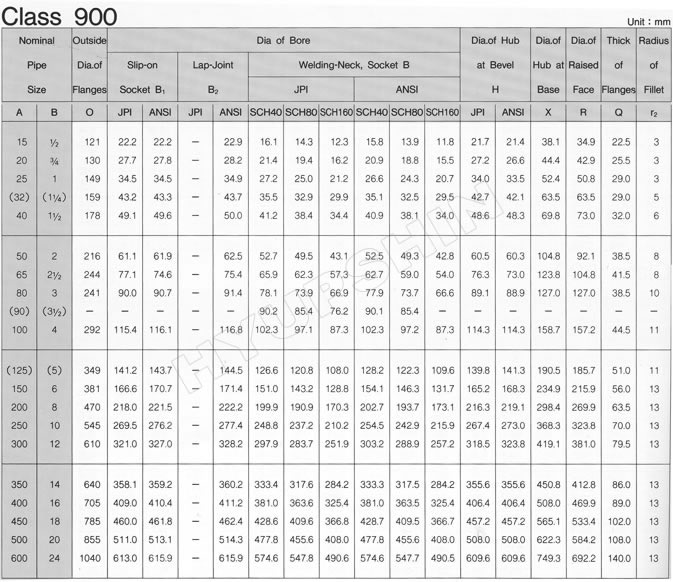

| Flange Dimensions & Approximate Masses |
|
|
|
|
|
KOREA KS CERTIFICATE |
ISO 9001 : 2015 |
CE PED 2014/68/EU, AD2000 W0 W9 |
| |
|
|
|
| Production Capacity & Purchase Details |
|
|
| 1. |
Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange. |
| 2. |
Material Carbon Steel: ASTM A105, A181, A350 LF1, A350LF2, A350LF3, A36, A234 WPB, Q235B, 20#, 20Mn etc. |
| 3. |
Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc. |
| 4. |
Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc. |
| 5. |
Monthly Output: 3000 tons per Month. |
| 6. |
Delivery Terms: CIF, CFR, FOB, EXW. |
| 7. |
Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc. |
| 8. |
Minimum Order Quantity: 1Ton or 100Pcs. |
| 9. |
Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service. |
| 10. |
Find More Requirements In Flanges Market. |
|
